Overview
Specification
Image Gallery

Overview

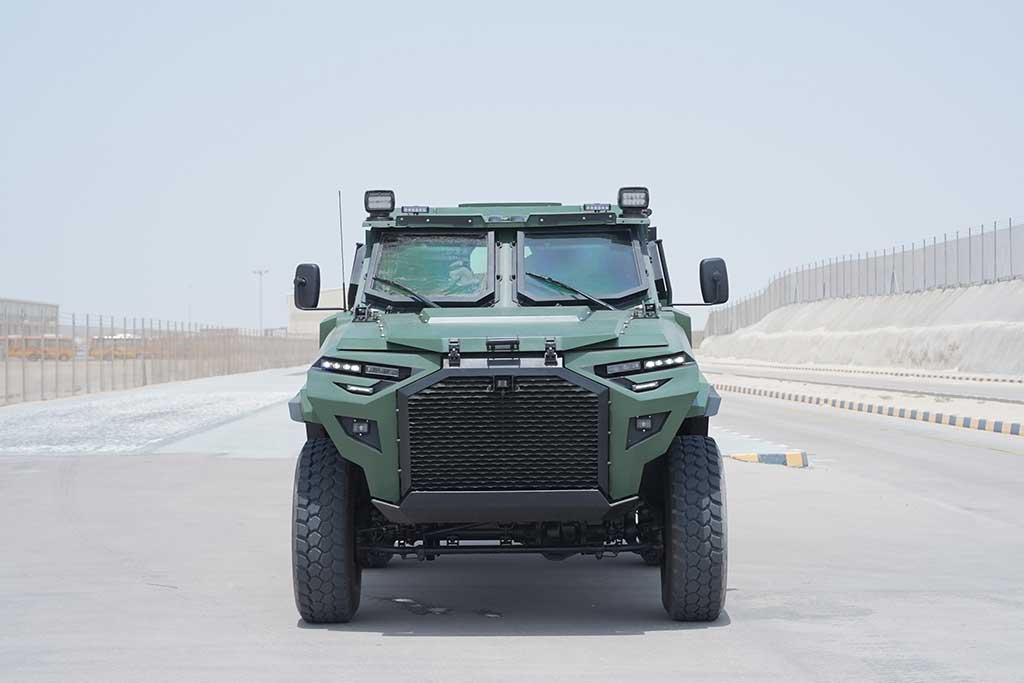

The BATT S is purpose-built for speed, maneuverability, and precision. Its compact profile makes it ideal for urban operations, rapid-response missions, and tight-terrain engagements where larger armored vehicles can’t operate effectively.

With capacity for up to 8 personnel, the BATT S offers an ergonomic interior layout designed for comfort and quick deployment. Its lighter frame and optimized suspension deliver enhanced agility, enabling operators to respond swiftly in high-pressure situations.

Available in configurations including APC, Tactical Command, Reconnaissance, and Medical Evacuation, the BATT S adapts seamlessly to mission-specific requirements.

Outfitted with reinforced suspension components, advanced braking systems, and run-flat all-terrain tires, it guarantees responsive handling and operational reliability even under extreme conditions.

Overview

Specification

Ballistic Protection Level
STANAG 2a/2b
Engine
6.7L V8
Fuel
Diesel
Power
330 hp
Torque
950 lb-ft
Transmission
10-Speed Automatic
Gun Port
Yes
Length, мм
5550
Width, мм
2470
Height, мм
2489
Seating
2 + 4/6
Doors
3 (2 Front + 1 Rear)
Turret
Optional With Roof Hatch
Driveline
Selectable 4x4
Suspension
Upgraded for GVW
Rims
20” Heavy Duty Alloy
Tires
335/80R20
CTIS
Optional
Brakes
Disc Brakes
Max Speed
110 km/h

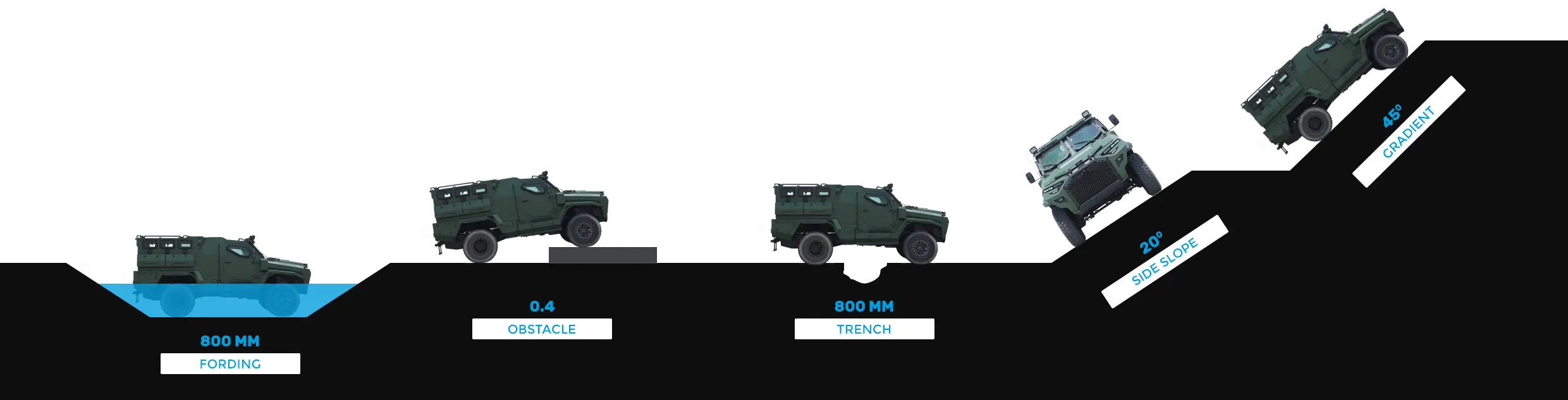

Gradeability
45°
Static Side Slope
20°
Fording
800 mm
Approach Angle
45°
Departure Angle
30°
Ballistic
Up to STANAG 2
Blast
Up to STANAG 2a/2b
Tires
Run Flat Inserts
Superior Off-Road Performance
